Main hardware indicators | |
size | 54mm long*46mm wide*3.2mm high |
CPU | ROCKCHIP RK3399K Six-core A72 Dual + A53 Quad |
GPU | Mali T860 MP4 |
RAM | DDR3 standard 2GB optional 4GB |
memory | EMMC 5.1 Standard 16GB Optional 8GB/32GB/64GB |
power management | RK808-D |
lithium battery | none |
Operating Voltage | Above 5V 2A |
support system | Android7.1 / 8.1 / Ubuntu16.04 / Linux+QT |
operating temperature | -25 to +85 degrees |
life | Continuous operating life is more than 5 years |
Common interface of core board | |
HDMI | HDMI high-definition output supports 4K/1080P display |
MIPI DSI | Support 8Lane up to 2K/4K |
MIPI CSI | Two-way CSI supports up to two-way 1300W |
I2S | One I2S interface |
USB2.0 | Two-way USB2.0 |
USB3.0 | Two USB3.0 or one TYPE-C |
TYPE-C | All the way TYPE-C |
Ethernet | PHY interface, baseboard plus PHY chip can expand 10/100/1000 Ethernet |
UART | 5 serial ports |
SPI | 5-way SPI |
I2C | 3-way I2C |
PWM | 3-way PWM |
TF | 1 channel TF card |
SDIO | 1 channel SDIO interface |
GPIO | Multiplexable GPIO up to 75 |
ADC | 3-way analog ADC input interface |
upgrade | Support USB/TF card local upgrade |
CORRENT PARAMETER TABLE
project | minimum | typical | maximum | |
Power parameters | Voltage | 4.5V | 5V | 5.5V |
ripple | -- | -- | 50mV | |
current | 312mA | -- | -- | |
supply current (No other peripherals connected) | Start-up current | 315mA | 630mA | 1215mA |
Desktop Quiescent Current | 512mA | |||
stand-by current | 21mA | |||
supply current (connected to the display) | ||||
environment | Relative humidity | -- | 65% | 75% |
Operating temperature | -25℃ | -- | 85℃ | |
storage temperature | -30℃ | -0℃ | 90℃ | |
Main hardware indicators | |
size | 54mm long*46mm wide*3.2mm high |
CPU | ROCKCHIP RK3399K Six-core A72 Dual + A53 Quad |
GPU | Mali T860 MP4 |
RAM | DDR3 standard 2GB optional 4GB |
memory | EMMC 5.1 Standard 16GB Optional 8GB/32GB/64GB |
power management | RK808-D |
lithium battery | none |
Operating Voltage | Above 5V 2A |
support system | Android7.1 / 8.1 / Ubuntu16.04 / Linux+QT |
operating temperature | -25 to +85 degrees |
life | Continuous operating life is more than 5 years |
Common interface of core board | |
HDMI | HDMI high-definition output supports 4K/1080P display |
MIPI DSI | Support 8Lane up to 2K/4K |
MIPI CSI | Two-way CSI supports up to two-way 1300W |
I2S | One I2S interface |
USB2.0 | Two-way USB2.0 |
USB3.0 | Two USB3.0 or one TYPE-C |
TYPE-C | All the way TYPE-C |
Ethernet | PHY interface, baseboard plus PHY chip can expand 10/100/1000 Ethernet |
UART | 5 serial ports |
SPI | 5-way SPI |
I2C | 3-way I2C |
PWM | 3-way PWM |
TF | 1 channel TF card |
SDIO | 1 channel SDIO interface |
GPIO | Multiplexable GPIO up to 75 |
ADC | 3-way analog ADC input interface |
upgrade | Support USB/TF card local upgrade |
CORRENT PARAMETER TABLE
project | minimum | typical | maximum | |
Power parameters | Voltage | 4.5V | 5V | 5.5V |
ripple | -- | -- | 50mV | |
current | 312mA | -- | -- | |
supply current (No other peripherals connected) | Start-up current | 315mA | 630mA | 1215mA |
Desktop Quiescent Current | 512mA | |||
stand-by current | 21mA | |||
supply current (connected to the display) | ||||
environment | Relative humidity | -- | 65% | 75% |
Operating temperature | -25℃ | -- | 85℃ | |
storage temperature | -30℃ | -0℃ | 90℃ | |

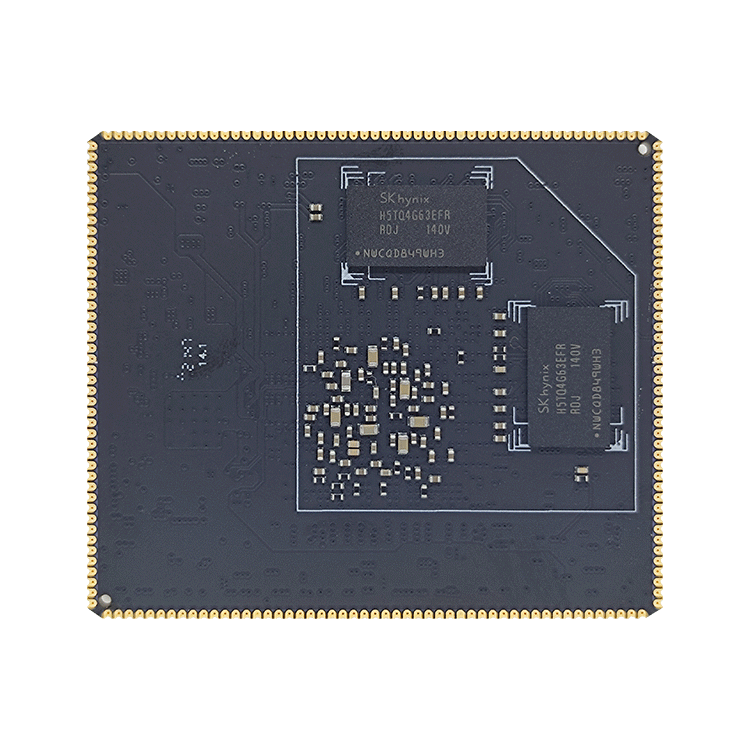

Product Show Case
